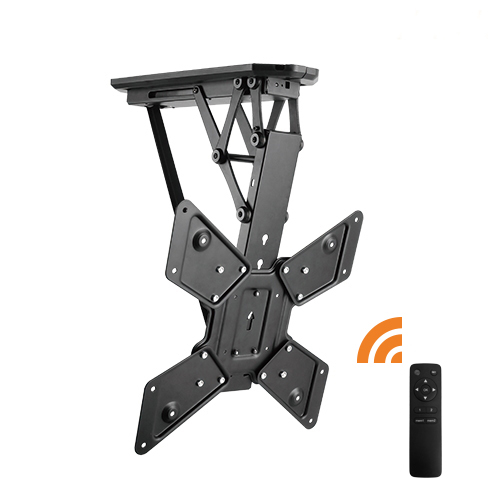

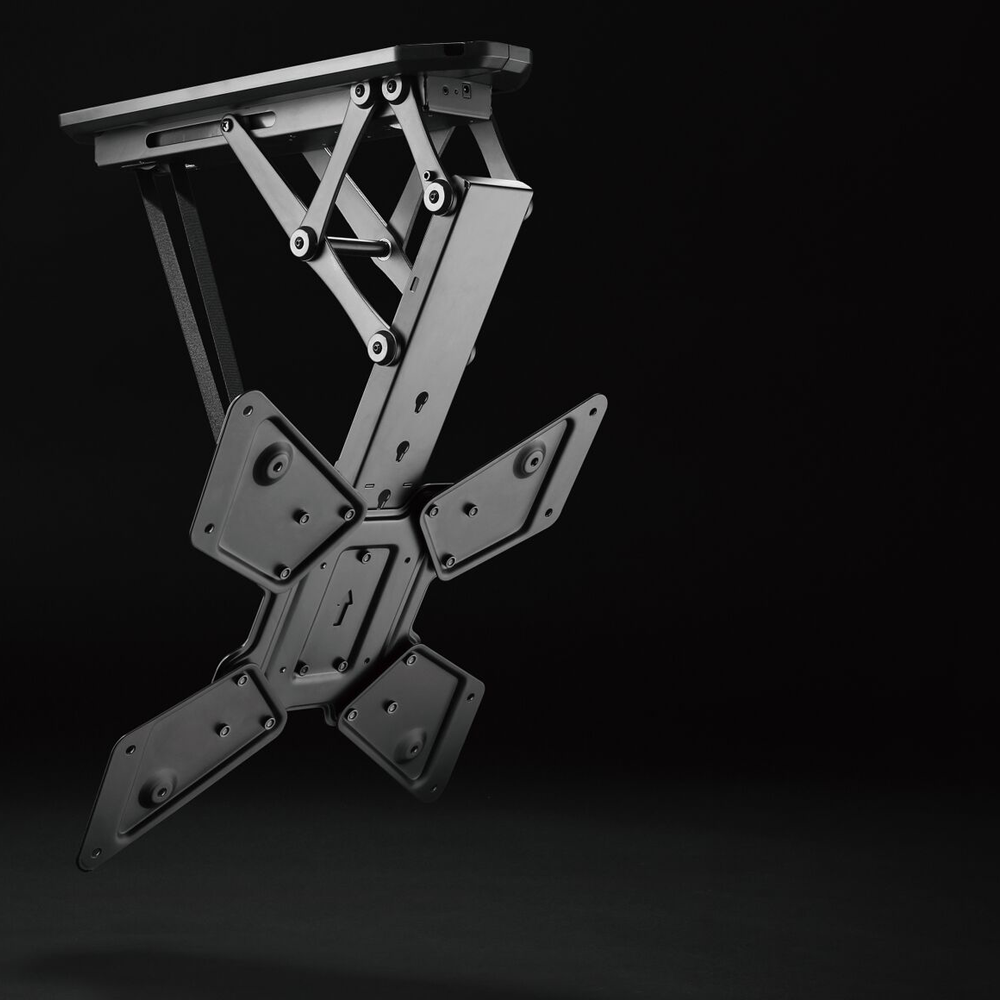

Remote Control Motorized Flip Down Ceiling Mount 23"-55"

Zoom

View Video

RRP: $478.68

($398.90 ex VAT)

SKU: 06303

STEP 2: CHOOSE YOUR MODULES

Plug Type:

–+
Where to buy

Description

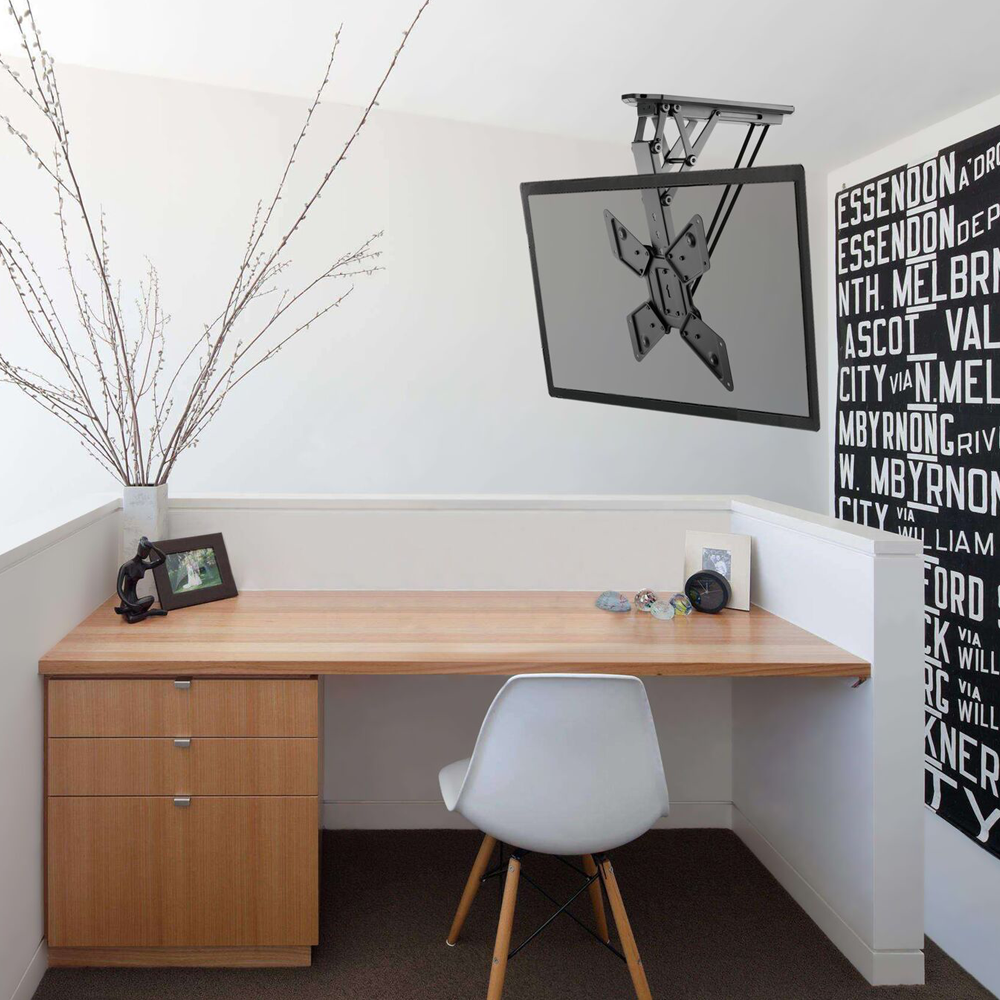

Put your TV centre stage with our easy-to-install flip down ceiling mounts

Our stylish mounts are fully motorised, and can be operated via a mini remote control

Perfect for homes and hotel rooms alike, these units are a must have for any modern establishment.

For a more rewarding viewing experience

This unique model is designed to fit any 32"-60" flat panel TV. Easy to install and even easier to operate, these units come with a remote control to provide maximum comfort and minimum fuss. Combining ease of use and practicality, nothing fits as snugly as a Lithe Audio wall mount.

Slick functionality

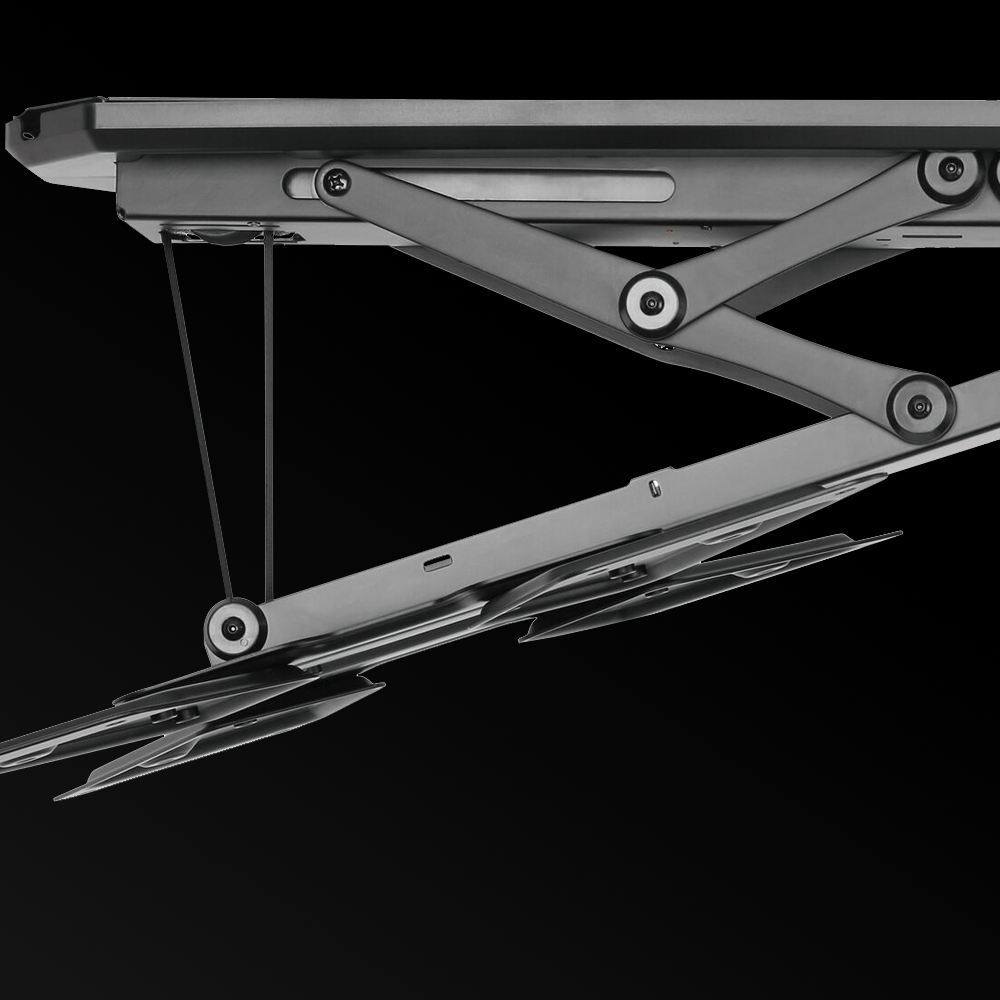

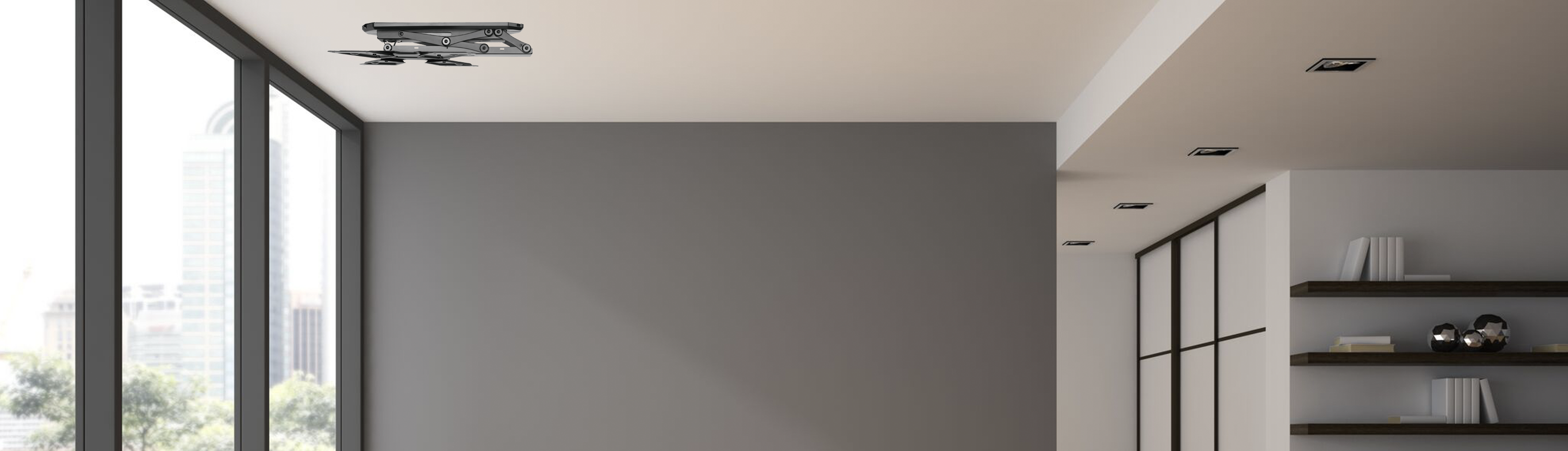

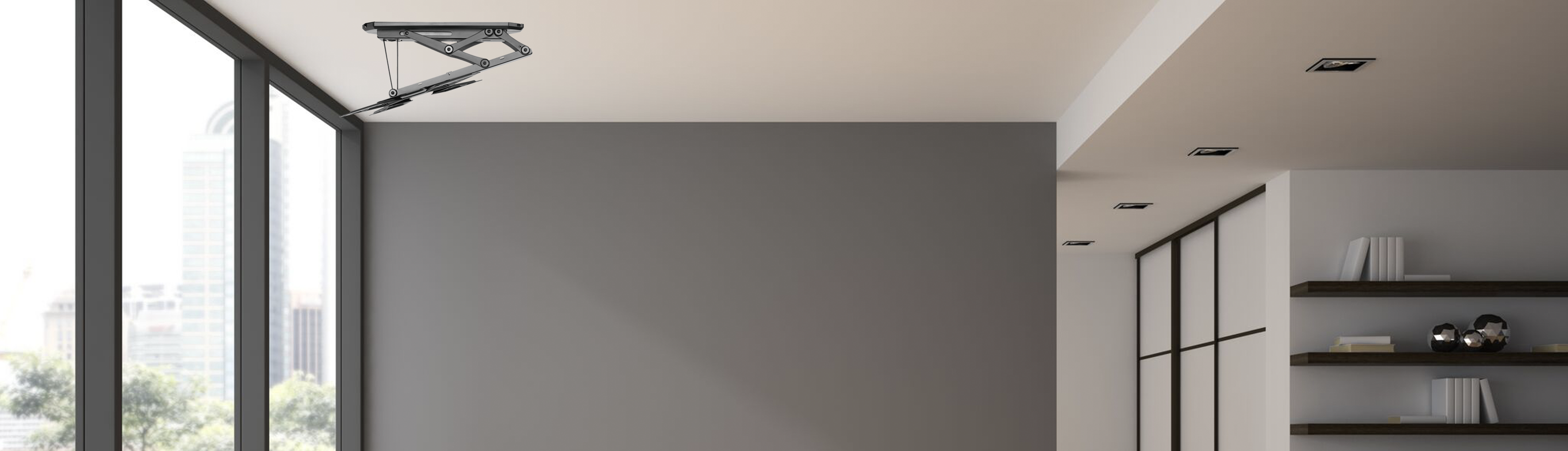

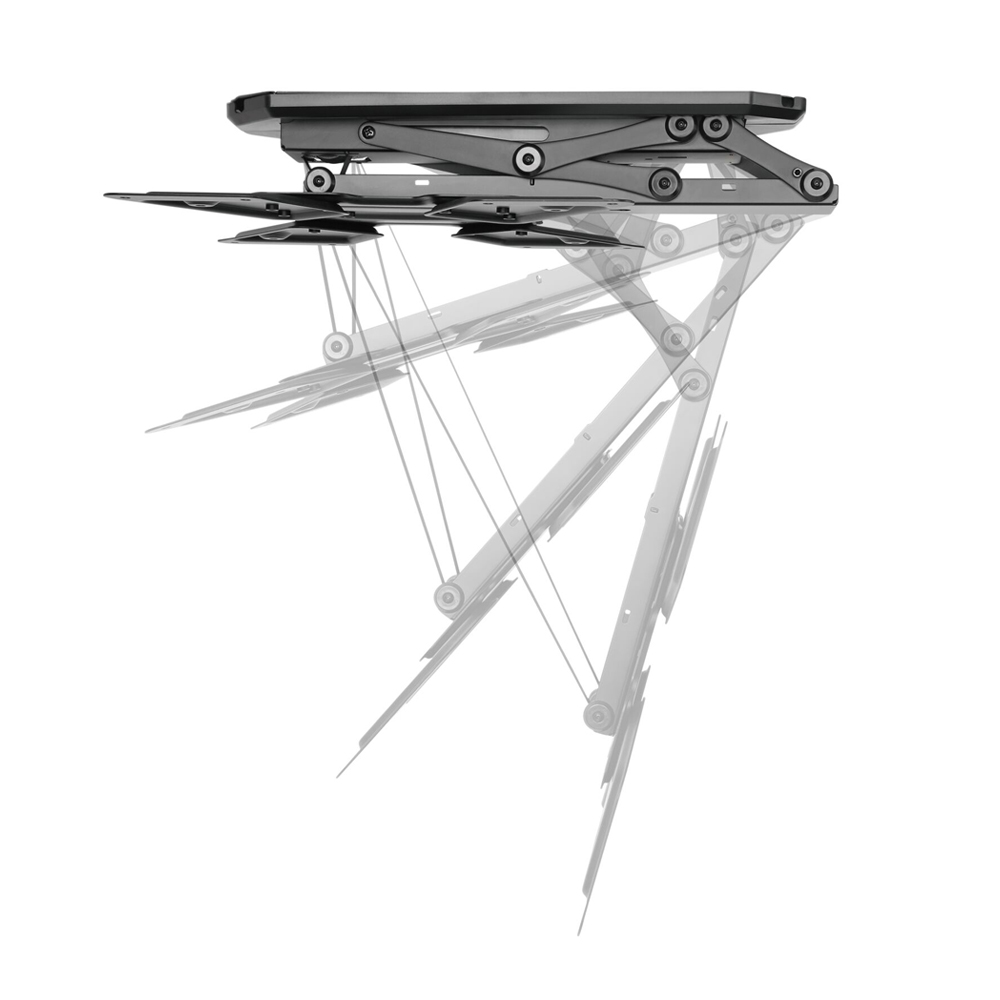

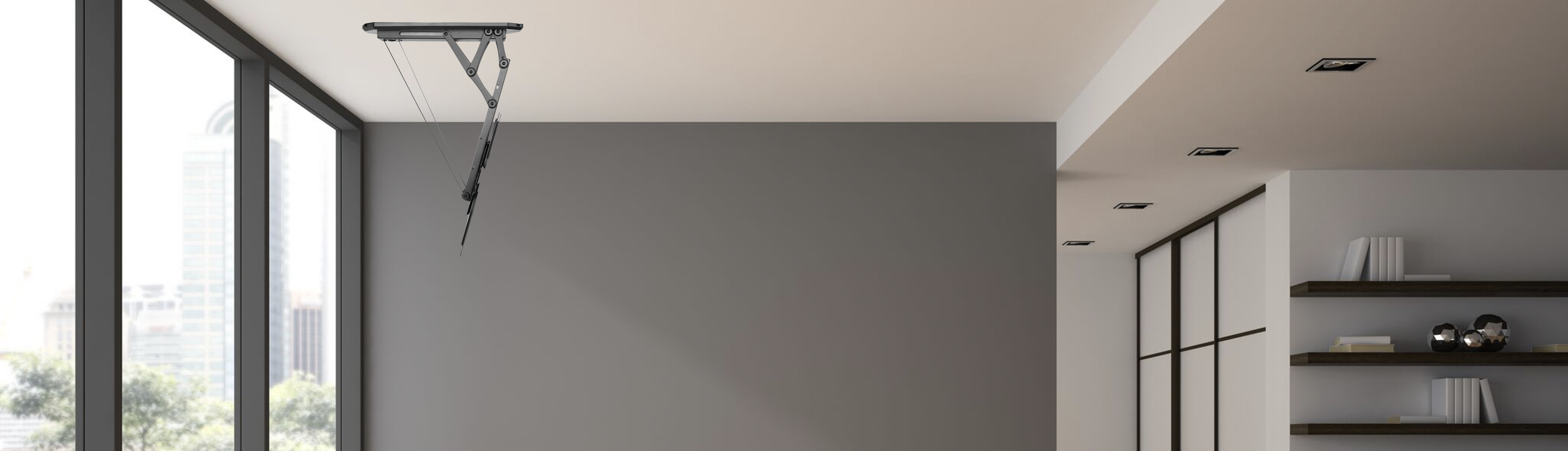

Flips down from the ceiling

Easy to install

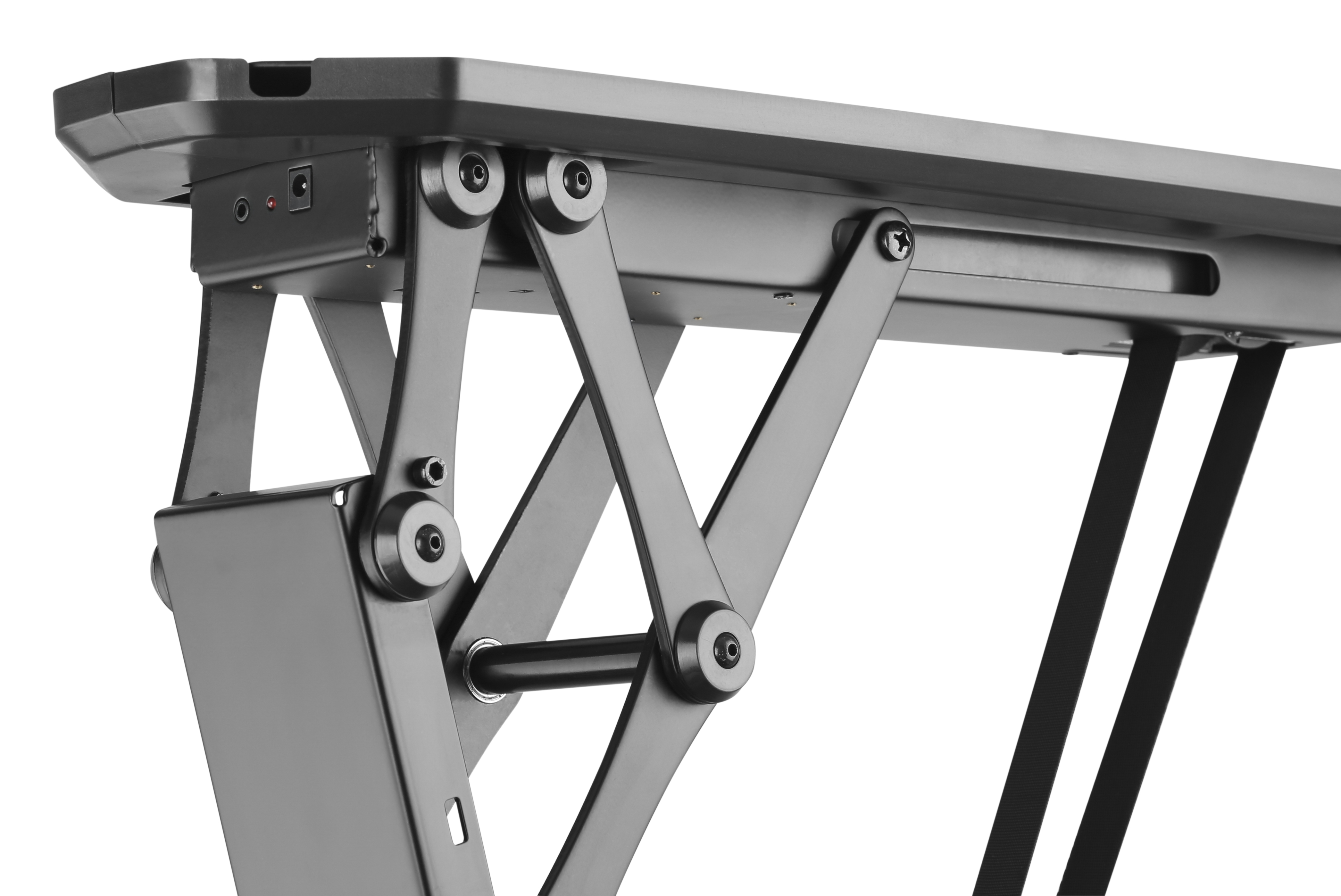

Efficient spring lock mechanism

Stylish appearance

Powder coated finish

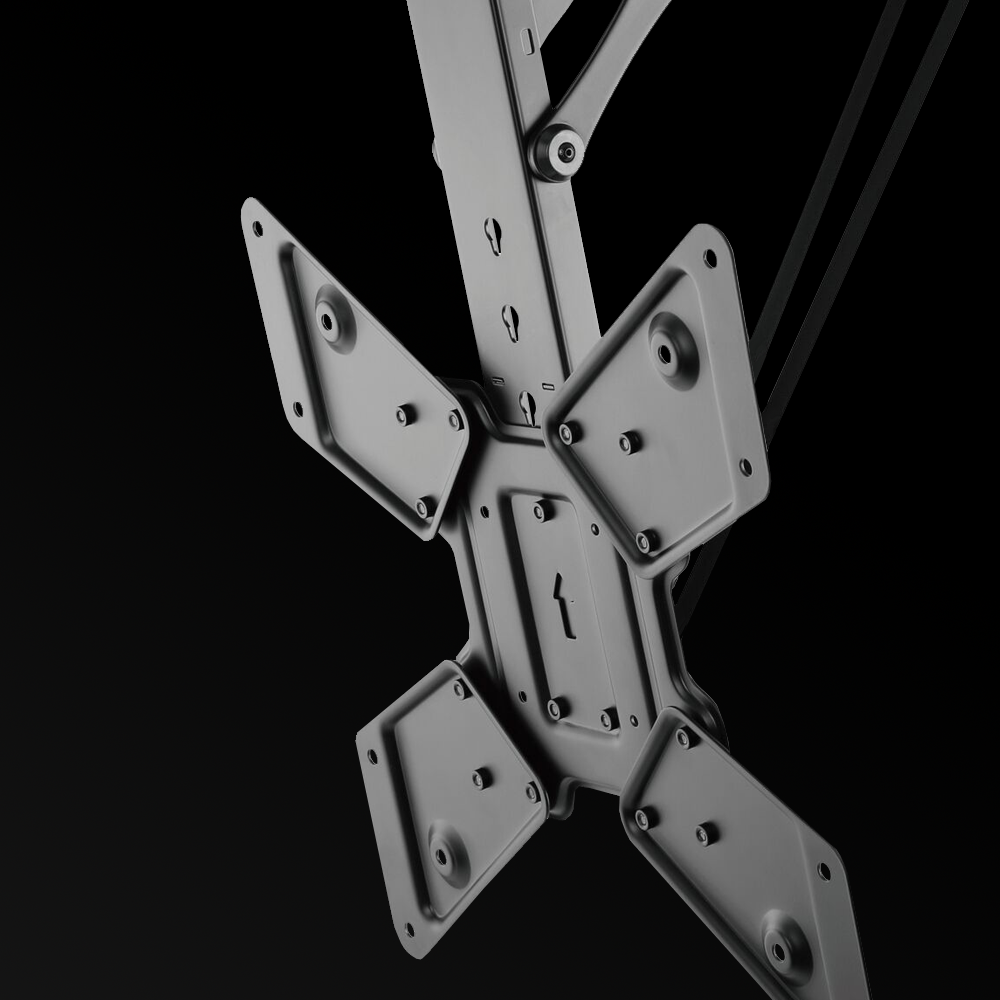

High strength

Tested to four times stated load capacity

Ventilated design

No problems with wiring

Virtually invisible

Smart features

glass surround

Let your fittings shine.

screwless face plate

our switches admint no imperfections.

retrofit solution

easy to install with your existing wiring.

glass surround

Let your fittings shine.

screwless face plate

our switches admint no imperfections.

retrofit solution

easy to install with your existing wiring.

the technical bit

Features

Motorised TV Ceiling mount
Function: Full motion IR Remote Controlled
Material: Aluminium, Steel, Plastic
Cable Management: Yes
Curved TV Available: YES

Movement spec

Suggested Screen Size:23"-55"
Max.Hole Pattern:400X400mm
VESA:100x100,200x200,300x300,400x200,400x400
Level Adjustment:+3°~-3°
Installation: Solid wall, Single Stud

Bracket spec

Strength tested:3 times approved
Profile: 108mm (4.3")
Rated Load:30kgs/66lbs
Product Size:557x435x108mm (21.9"x17.1"x4.3")
Power supply: AC 240V
Limited Warranty: 2 Year

What's in the box

Motorised Bracket
Fixing Screws
Level
Fixing template
Instruction manual

Installation Guide

Specification Sheet

Common questions

Please see below most commonly asked questions, any further answers can be found within support

How easy are the motorised TV mounts to fit?

Our Motorised TV mounts are mounted in the same way as standard brackets, except they require a 13A plug for power for the motor.

What size TV can be used with Motorised TV mounts?

32" to 60" can be used, using the VESA mounting positions to the rear of the TV

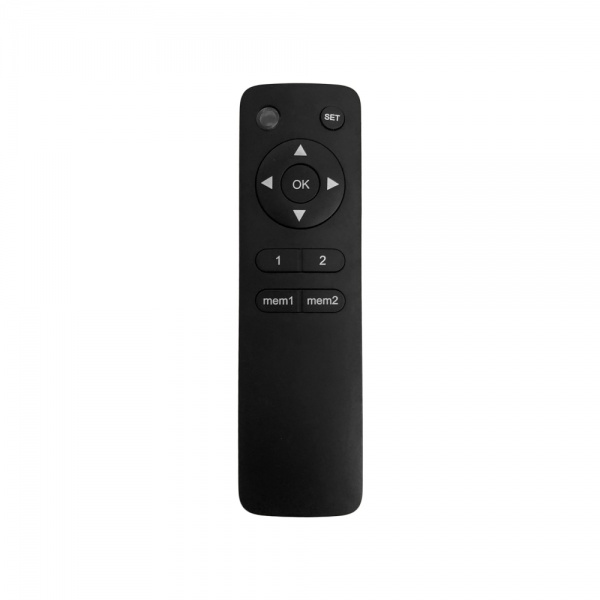

Can the remote be used with a learning remote controller?

Yes, place the device in learn mode press SET for 5 seconds until LED on remote flickers then stays lit then press OK (1 beep will be heard), red LED will stay on, LEARN mode active. To learn the 5 functions left, right, OK, up and down to suit. To learn press example left, press left on remote until 2 beeps, the red LED on IR receiver will change from steady to slow flashes. Aim the (learning controller) at the IR receiver and press the button that you need to set as left until beeps three times. The red LED on the IR receiver will change from slow flashes to fast flashes. Press OK on the Remote until 4 beeps, the red LED on the IR receiver shall turn off, showing left has LEARNED successfully.

Are the Motorised TV mounts easy to connect to mains supply?

Yes, you can connect the power supply adapter as supplied into a mains socket, it is simple as that.
